The Ranges Library in C++20: More Design Choices

The ranges library in C++20 made due to performance reasons a few unique design choices. These choices have consequences: cache issues and constness issues.

Here is a short reminder. In my last post, “The Ranges Libray in C++20: Design Choices“, I presented this possible implementation of std::ranges::filter_view:

if constexpr (!ranges::forward_range<V>)
    return /* iterator */{*this, ranges::find_if(base_, std::ref(*pred_))};
else
{
    if (!begin_.has_value())
        begin_ = ranges::find_if(base_, std::ref(*pred_)); // caching
    return /* iterator */{*this, begin_.value())};
}

The key observation is that the begin iterator is cached for subsequent calls. This caching has two interesting consequences:

Don’t use a view on modified ranges.
Don’t copy a view.

Or, to put it positively: Use views directly after you have defined them.

There are more design choices you must know.

Constness

The member function of a view may cache the position. This implicates the following:

A function taking an arbitrary view should take its view by universal reference.
Reading two views concurrently may be a data race.

Let’s discuss the first consequence.

Take Arbitrary Views by Universal Reference

The function printElements takes its view by universal reference.

void printElements(std::ranges::input_range auto&& rang) {
    for (int i: rang) {
        std::cout << i << " ";
    }
    std::cout << '\n';
}

printElements takes its argument by universal reference. Taking it by lvalue reference or by value is, in general, no option.

Modernes C++ Mentoring

"Fundamentals for C++ Professionals" (open)

"Design Patterns and Architectural Patterns with C++" (open)

"C++20: Get the Details" (open)

"Concurrency with Modern C++" (open)

"Generic Programming (Templates) with C++": October 2024

"Embedded Programming with Modern C++": October 2024

"Clean Code: Best Practices for Modern C++": March 2025

Do you want to stay informed: Subscribe.

Taking the argument by const lvalue reference may not work because the implicit begin call on the view could modify it. On the contrary, a non-const lvalue reference cannot handle rvalues.

Taking the argument by value may invalidate the cache.

Concurrent Reading of Views may be a Data Race

The following program exemplifies the concurrency issue with views:

// dataRaceRanges.cpp

#include <numeric>
#include <iostream>
#include <ranges>
#include <thread>
#include <vector>

int main() {

    std::vector<int> vec(1'000);
    std::iota(vec.begin(), vec.end(), 0);

    auto first5Vector = vec | std::views::filter([](auto v) { return v > 0; })
                            | std::views::take(5);

    std::jthread thr1([&first5Vector]{
        for (int i: first5Vector) {
            std::cout << i << " ";
        }
    });


    for (int i: first5Vector) {
        std::cout << i << " ";
    }

    std::cout << "\n\n";

}

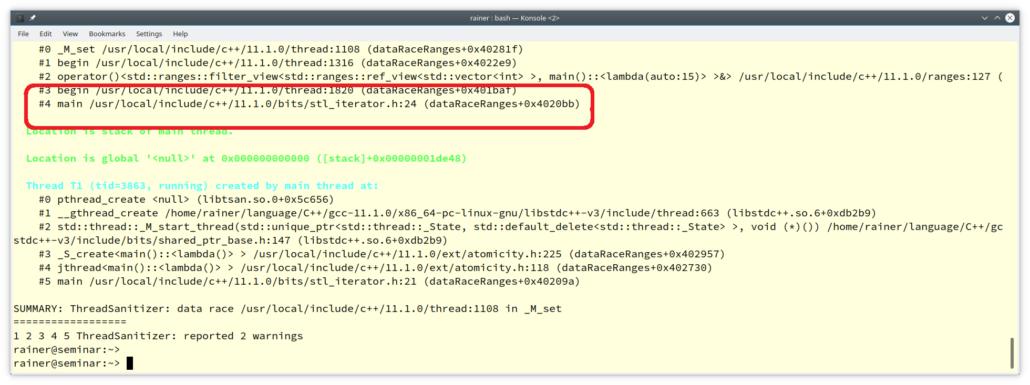

I iterate in the program dataRaceRanges.cpp concurrently two times through a view in a non-modifying way. First, I iterate in the std::jthread thr1 and second in the main function. This is a data race because both iterations implicitly use the member function begin, which may cache the position. ThreadSanitizer visualizes this data race and complains about a previous write on line 24: std::cout << i << " ";

On the contrary, iterating through a classical container such as std::vector is thread-safe. There is an additional difference between classical container and views.

Propagation of Constness

Classical container model deep constness. They propagate their constness to their elements. This means that modifying elements of a constant container is impossible.

// constPropagationContainer.cpp

#include <iostream>
#include <vector>

template <typename T>
void modifyConstRange(const T& cont) {
    cont[0] = 5;
}

int main() {

    std::vector myVec{1, 2, 3, 4, 5};
    modifyConstRange(myVec);         // ERROR

}

The call modifyConstRange(myVec) causes a compile-time error.

On the contrary, views model shallow constness. They do not propagate the constness to their elements. The elements can still be modified.

// constPropagationViews.cpp

#include <iostream>
#include <ranges>
#include <vector>

template <typename T>
void modifyConstRange(const T& cont) {
    cont[0] = 5;
}

int main() {

    std::vector myVec{1, 2, 3, 4, 5};

    modifyConstRange(std::views::all(myVec));   // OK

}

The call modifyConstRange(std::views::all(myVec)) is fine.

What’s Next?

Coroutines are probably the most challenging part of C++20. My next post presents a guest post from Dian-Lun Lin. He will give a concise introduction to coroutines and exemplify his idea with a straightforward scheduler managing tasks.
