ClassTemplate

Class Templates

A function template represents a family of functions. Accordingly, a class template represents a family of classes. Today, I want to introduce class templates.

 ClassTemplate

Defining a class template is straightforward.

Definition of a Class Template

Assume you have a class Array that should become a class template.



Rainer D 6 P2 500x500Modernes C++ Mentoring

Be part of my mentoring programs:

  • "Fundamentals for C++ Professionals" (open)
  • "Design Patterns and Architectural Patterns with C++" (open)
  • "C++20: Get the Details" (open)
  • "Concurrency with Modern C++" (starts March 2024)
  • Do you want to stay informed: Subscribe.



    class Array{

     public:
        int getSize() const {
            return 10;
        }

     private:
        int elem[10];
    };




    The class Array holds a C-array of int with length 10. The type of the C-array and its length are obvious generalization points. Let’s make a class template by introducing a type parameter T and a non-type parameter N and playing with them.



    // arrayClassTemplate.cpp

    #include <cstddef>                     // (1)
    #include <iostream>
    #include <string>

    template <typename T, std::size_t N>   // (2)
    class Array{

     public:
        std::size_t getSize() const {
            return N;
        }

    private:
        T elem[N];
    };

    int main() {

        std::cout << '\n';

        Array<int, 100> intArr;             // (3)
        std::cout << "intArr.getSize(): " << intArr.getSize() << '\n';

        Array<std::string, 5> strArr;       // (4)
        std::cout << "strArr.getSize(): " << strArr.getSize() << '\n';

        Array<Array<int, 3>, 25> intArrArr; // (5)
        std::cout << "intArrArr.getSize(): " << intArrArr.getSize() << '\n';

        std::cout << '\n';

    }




    The Array is parametrized by its type and its size. For size, I used the unsigned integer type std::size_t (2) that can store the maximum size. To use std::size_tI have to include the header <cstddef> (1). So far, the Array can be instantiated with an int (3) with a std::string (4), and with an Array<int, 3> (5). The following screenshot shows the output of the program.

    arrayClassTemplate

    You can define the member functions of a template inside and outside the class template.

    Definitions of Member Functions

    Defining the member function inside the class template is straightforward.

    template <typename T, std::size_t N>
    class Array{

     public:
        std::size_t getSize() const {
            return N;
        }

    private:
        T elem[N];
    };




    When you define the member functions outside the class, you have to specify that it is a template, and you have to specify the full type qualification of the class template. Here is the modified class template Array:



    template <typename T, std::size_t N>
    class Array{

     public:
        std::sizt_ getSize() const;

    private:
        T elem[N];
    };

    template <typename T, std::size_t N>   // (1)
    std::size_t Array<T, N>::getSize() const {
        return N;
    }




    (1) is the member function getSize of the Array, defined outside the class. Defining the member function outside the class template becomes challenging if the member function itself is a template.

    Member Functions as Templates

    A typical example of a generic member function is a templated assignment operator. The reason is straightforward. You want to assign an Array<T, N> to an Array<T2, N2> if T is assignable to T2 and both arrays have the same size.

    Assigning an Array<float, 5> to an Array<double, 5> is not valid because both arrays have different types.



    // arrayAssignmentError.cpp

    #include <cstddef>
    #include <iostream>
    #include <string>

    template <typename T, std::size_t N>
    class Array{

     public:
        std::size_t getSize() const {
            return N;
        }

    private:
        T elem[N];
    };

    int main() {

        std::cout << '\n';

        Array<float, 5> floatArr;
        Array<float, 5> floatArr2;

        floatArr2 = floatArr;             // (1)


        Array<double, 5> doubleArr;
        doubleArr = floatArr;             // (2)


    }

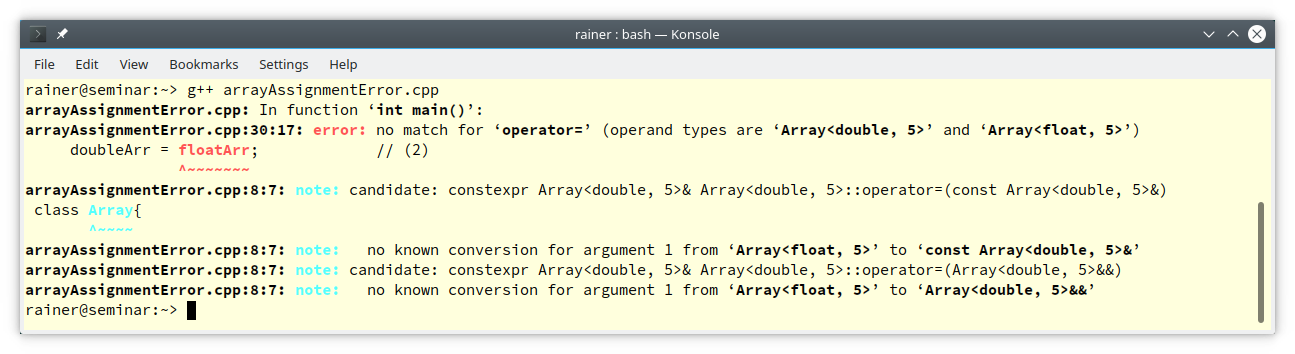

    Assigning floatArr to floatArr2 (1) is valid because both arrays have the same type. Assigning floatArr to doubleArr is an error (2) because both classes have different types. The compiler consequently complains that there is no conversion from Array<float, 5> to an Array<double, 5>.

     arrayAssignmentError

    Here is a naive implementation of the class Array that supports the assignment of two arrays of the same length. The C-array elem is intentionally public.



    template <typename T, std::size_t N>
    class Array{

     public:
        template <typename T2>
        Array<T, N>& operator = (const Array<T2, N>& arr) {
            std::copy(std::begin(arr.elem), std::end(arr.elem), std::begin(elem));
            return *this;
        }
        std::size_t getSize() const {
            return N;
        }
        T elem[N];

    };




    The assignment operator Array<T, N>& operator = (const Array<T2, N>& arr) accepts arrays that could vary in the underlying type but could not vary in length.  Before I show the code in action, I want to improve it.

    Friendship

    To make elem private, it must be a friend of the class.

    template <typename T, std::size_t N>
    class Array{

     public:
        template <typename T2>
        Array<T, N>& operator = (const Array<T2, N>& arr) {
            std::copy(std::begin(arr.elem), std::end(arr.elem), std::begin(elem));
            return *this;
        }
        template<typename, std::size_t> friend class Array;          // (1)
        std::size_t getSize() const {
            return N;
        }
     private:
        T elem[N];

    };




    The line template<typename, std::size_t> friend class Array (1) declares all instances of Array to friends.

    Member Function defined Outside The Class

    Defining the generic member function outside the class is quite a job.

    template <typename T, std::size_t N>
    class Array{

     public:
        template <typename T2>
        Array<T, N>& operator = (const Array<T2, N>& arr);
        template<typename, std::size_t> friend class Array;
        std::size_t getSize() const;
     private:
        T elem[N];

    };

    template <typename T, std::size_t N>
    std::size_t Array<T, N>::getSize() const { return N; }

    template<typename T, std::size_t N>                // (1)
    template<typename T2>
    Array<T, N>& Array<T, N>::operator = (const Array<T2, N>& arr) {
        std::copy(std::begin(arr.elem), std::end(arr.elem), std::begin(elem));
        return *this;
    }




    In this case, you define a generic member function (1) outside the class body; you have to specify that the class and the member functions are templates. Additionally, you have to specify the full type qualification of the generic member function. So far, the assignment operator is used for types T and T2 that is not convertible. Invoking the assignment operator with non-convertible types gives an ugly error message. I should fix this.

    Requirements on the Type Parameters

    The requirements can be formulated with the type traits library and static_assert (C++11), or with concepts (C++20). Here are the two variations of the generic assignment operator:

    • C++11

    template<typename T, std::size_t N>
    template<typename T2>
    Array<T, N>& Array<T, N>::operator = (const Array<T2, N>& arr) {
        static_assert(std::is_convertible<T2, T>::value,     // (1)
                          "Cannot convert source type into the destination type!");
        std::copy(std::begin(arr.elem), std::end(arr.elem), std::begin(elem));
        return *this;
    }




    • C++20

    Finally, here is the complete program using the concept std::convertible_to in the declaration (1) and the definition (2) of the member function.

    // arrayAssignment.cpp

    #include <algorithm>
    #include <cstddef>
    #include <iostream>
    #include <string>
    #include <concepts>

    template <typename T, std::size_t N>
    class Array{

     public:
        template <typename T2>
        Array<T, N>& operator = (const Array<T2, N>& arr) requires std::convertible_to<T2, T>;           // (1)
        template<typename, std::size_t> friend class Array;
        std::size_t getSize() const;
     private:
        T elem[N];

    };

    template <typename T, std::size_t N>
    std::size_t Array<T, N>::getSize() const { return N; }

    template<typename T, std::size_t N>
    template<typename T2>
    Array<T, N>& Array<T, N>::operator = (const Array<T2, N>& arr) requires std::convertible_to<T2, T> { // (2)
        std::copy(std::begin(arr.elem), std::end(arr.elem), std::begin(elem));
        return *this;
    }

    int main() {

        std::cout << '\n';

        Array<float, 5> floatArr;
        Array<float, 5> floatArr2;
        floatArr.getSize();

        floatArr2 = floatArr;


        Array<double, 5> doubleArr;
        doubleArr = floatArr;

        Array<std::string, 5> strArr;
        // doubleArr = strArr;            // (3)

    }




    When I enable (3), the GCC complains that the constraints are unsatisfied.

    What’s next?

    As you might imagine. I’m not done with class templates. Next time I will write about two tricky details: the inheritance of class templates and the instantiation of member functions of class templates.
