C++ Core Guidelines: Rules about Performance

Before I write about the rules of performance, I will do a straightforward job. Accessing the elements of a container one by one.



cheetah

Here is the last rule for arithmetic.

ES.107: Don’t use unsigned for subscripts, prefer gsl::index

Did I say that this is a simple job? Honestly, this was a lie.  See what can go wrong. Here is an example of a std::vector.

vector<int> vec = /*...*/;

for (int i = 0; i < vec.size(); i += 2)                    // may not be big enough (2)
    cout << vec[i] << '\n';
for (unsigned i = 0; i < vec.size(); i += 2)               // risk wraparound       (3)
    cout << vec[i] << '\n';
for (auto i = 0; i < vec.size(); i += 2)                   // may not be big enough (2)
    cout << vec[i] << '\n';
for (vector<int>::size_type i = 0; i < vec.size(); i += 2) // verbose               (1)
    cout << vec[i] << '\n';
for (auto i = vec.size()-1; i >= 0; i -= 2)                // bug                   (4)
    cout << vec[i] << '\n';
for (int i = vec.size()-1; i >= 0; i -= 2)                 // may not be big enough (2)
    cout << vec[i] << '\n';





Rainer D 6 P2 500x500Modernes C++ Mentoring

Be part of my mentoring programs:

  • "Fundamentals for C++ Professionals" (open)
  • "Design Patterns and Architectural Patterns with C++" (open)
  • "C++20: Get the Details" (open)
  • "Concurrency with Modern C++" (starts March 2024)
  • Do you want to stay informed: Subscribe.



    Scary? Right! Only line (1) is correct. It may happen in line (2) that the variable i is too small. The result may be an overflow. This will not hold for line (3) because i is unsigned. Instead of an overflow, you will get a modulo operation. In my last post, I wrote about this nice effect: C++ Core Guidelines: Rules to Statements and Arithmetic. To be more specific, it was ruled ES.106.

    Line 4 is left. This is my favorite one. What is the problem? The problem is that vec.size() is of type std::size_t. std::size_t is an unsigned type and can not represent negative numbers. Imagine what would happen if the vector was empty. This means that vec.size() -1 is –1. The result is that we get the maximum value of type std::size_t.

    The program index.cpp shows this strange behavior.



    // index.cpp

    #include <iostream>
    #include <vector>

    int main(){

        std::cout << std::endl;

        std::vector<int> vec{};

        auto ind1 = vec.size() - 1 ;
        int ind2 = vec.size() -1 ;

        std::cout << "ind1: " << ind1 << std::endl;
        std::cout << "ind2: " << ind2 << std::endl;

        std::cout << std::endl;

    }

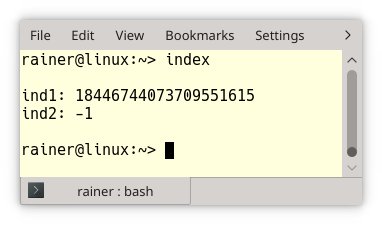

     And here is the output:

    index

    The guidelines suggest that the variable i should be of type gsl::index.



    for (gsl::index i = 0; i < vec.size(); i += 2)             // ok
        cout << vec[i] << '\n';
    for (gsl::index i = vec.size()-1; i >= 0; i -= 2)          // ok
        cout << vec[i] << '\n';




    If this is not an option, use the type std::vector<int>::size_type for i.

    Performance is the domain of C++! Right? Therefore I was pretty curious to write about the rules for performance. But this is hardly possible because most of the rules lack beef. They consist of a title and a reason. Sometimes even the reason is missing.

    Anyway. Here are the first rules:

     Instead of writing general remarks to general rules, I will provide a few examples of these rules. Let’s start with rules Per.4, Per.5, and Per.6

    Per.4: Don’t assume that complicated code is necessarily faster than simple code

    Per.5: Don’t assume that low-level code is necessarily faster than high-level code

    Per.6: Don’t make claims about performance without measurements



    Before I continue to write, I have to make a disclaimer: I do not recommend using the singleton pattern. I only want to show that complicated and low-level code does not always pay off. To prove my point, I have to measure the performance.

    Long ago, I wrote about the thread-safe initialization of the singleton pattern in my post: Thread-safe initialization of a singleton. The key idea of the post was to invoke the singleton pattern 40.000.000 times from four threads and measure the execution time. The singleton pattern will be initialized lazily; therefore, the first call has to initialize it.

    I implemented the singleton pattern in various ways. I did it with a std::lock_guard and the function std::call_once in combination with the std::once_flag. I did it with a static variable. I even used atomics and broke the sequential consistency for performance reasons.

    To make my pointer clear. I want to show you the most straightforward and challenging implementation.

    The easiest implementation is the so-called Meyers singleton. It is thread-safe because the C++11-standard guarantees that a static variable with block scope will be initialized in a thread-safe way.



    // singletonMeyers.cpp

    #include <chrono>
    #include <iostream>
    #include <future>

    constexpr auto tenMill= 10000000;

    class MySingleton{
    public:
      static MySingleton& getInstance(){
        static MySingleton instance;                         // (1)
        // volatile int dummy{};
        return instance;
      }
    private:
      MySingleton()= default;
      ~MySingleton()= default;
      MySingleton(const MySingleton&)= delete;
      MySingleton& operator=(const MySingleton&)= delete;

    };

    std::chrono::duration<double> getTime(){

      auto begin= std::chrono::system_clock::now();
      for (size_t i= 0; i < tenMill; ++i){
          MySingleton::getInstance();                        // (2)
      }
      return std::chrono::system_clock::now() - begin;

    };

    int main(){

        auto fut1= std::async(std::launch::async,getTime);
        auto fut2= std::async(std::launch::async,getTime);
        auto fut3= std::async(std::launch::async,getTime);
        auto fut4= std::async(std::launch::async,getTime);

        auto total= fut1.get() + fut2.get() + fut3.get() + fut4.get();

        std::cout << total.count() << std::endl;

    }




    Line (1) uses the guarantee of the C++11-runtime that the singleton will be initialized in a thread-safe way. Each of the four threads in the main function invokes 10 million times the singleton inline (2). In total, this makes 40 million calls.

    But I can do better. This time I use atomics to make the singleton pattern thread-safe. My implementation is based on the infamous double-checked locking pattern. For the sake of simplicity, I will only show the implementation of the class MySingleton.

    class MySingleton{
    public:
      static MySingleton* getInstance(){
        MySingleton* sin= instance.load(std::memory_order_acquire);
        if ( !sin ){
          std::lock_guard<std::mutex> myLock(myMutex);
          sin= instance.load(std::memory_order_relaxed);
          if( !sin ){
            sin= new MySingleton();
            instance.store(sin,std::memory_order_release);
          }
        }
        // volatile int dummy{};
        return sin;
      }
    private:
      MySingleton()= default;
      ~MySingleton()= default;
      MySingleton(const MySingleton&)= delete;
      MySingleton& operator=(const MySingleton&)= delete;

      static std::atomic<MySingleton*> instance;
      static std::mutex myMutex;
    };


    std::atomic<MySingleton*> MySingleton::instance;
    std::mutex MySingleton::myMutex;




    Maybe you heard that the double-checked locking pattern is broken.  Of course, not my implementation! If you don’t believe me, prove it to me. First, you have to study the memory model, think about the acquire-release semantic, and think about the synchronization and ordering constraint that will hold in this implementation. This is not an easy job. But you know, highly sophisticated code pays off.

    Damn. I forgot the rule Per.6: Here are the performance numbers for the Meyers singleton on Linux. I compiled the program with maximum optimization. The numbers on Windows were in the same ballpark.singletonMeyers opt

    Now I’m curious. What are the numbers for my highly sophisticated code? Let’s see which performance we will get with atomics.

    singletonAcquireRelease opt

    50% percent slower! 50% percent slower, and we don’t even know if the implementation is correct. Disclaimer: The implementation is correct.

    Indeed, the Meyers singleton was the fastest and easiest way to get a thread-safe implementation of the singleton pattern. If you are curious about the details, read my post: Thread-safe initialization of a singleton.

    What’s next?

    There are more than 10 rules to performance left in the guidelines. Although it is quite challenging to write about such general rules for my next post, I have a few ideas in mind.
