The Type-Traits Library: Optimization

The type-traits library has two main goals: correctness and optimization. Today, I write about optimization.

templatesTypeTraits

This post is the last post in my miniseries about the type-traits library. I have already written the following posts:

Before I write about optimization in C++, I want to tell a short anecdote. I often have the following conversation with my students in my classes:

  • Me: Why do we have the feature ABC in C++?
  • Student: I don’t know.
  • Me: If you don’t have an answer, say performance. This always works in C++.

So, let me write about the type-traits library from the optimization perspective.

Optimization

The idea is quite straightforward and used in the Standard Template Library (STL). If the elements of a range are simple enough, the algorithms of the STL like std::copy, std::fill, or  std::equal are directly applied to memory. Instead of using std::copy to copy each element one by one, all is done in one big step. Internally, C functions like memcmp, memset, memcpy, or memmove are used. The small difference between memcpy and memmove is that memmove can deal with overlapping memory areas.



Rainer D 6 P2 500x500Modernes C++ Mentoring

Be part of my mentoring programs:

  • "Fundamentals for C++ Professionals" (open)
  • "Design Patterns and Architectural Patterns with C++" (open)
  • "C++20: Get the Details" (open)
  • "Concurrency with Modern C++" (starts March 2024)
  • Do you want to stay informed: Subscribe.



    The implementations of the algorithm std::copy, std::fill, or std::equal use a simple strategy.  std::copy is like a wrapper. This wrapper checks if the elements are simple enough. If so, the wrapper will delegate the work to the optimized copy function. If not, the conservative copy algorithm is used. This conservative one copies each element after the other. The functions of the type-traits library are heavily used to make the right decision.

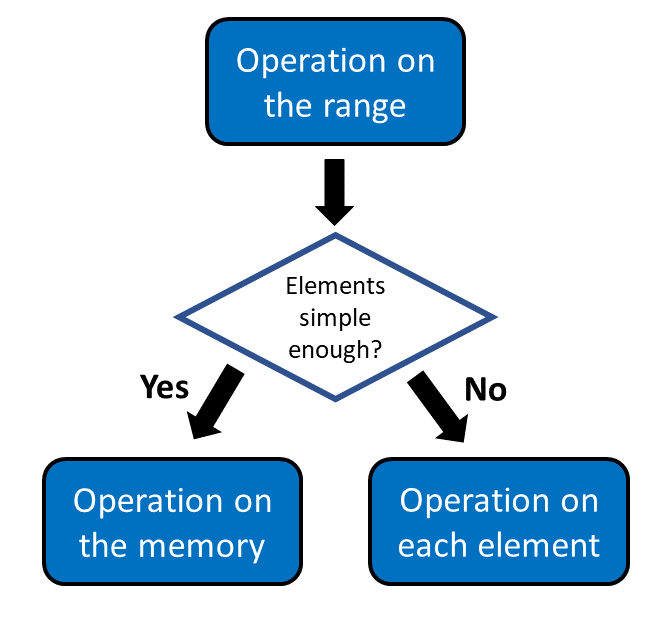

    The graphic shows the general strategy:

    PerformanceDecision



    That was the theory, but here is the practice. Which strategy is used by std::fill?

    std::fill

    std::fill assigns each element in the range a value. The listing shows a GCC-inspired implementation of std::fill.

    // fillGCC.cpp

    #include <cstring>
    #include <chrono>
    #include <iostream>
    #include <type_traits>

    namespace my{

      template <typename I, typename T, bool b>
      void fill_impl(I first, I last, const T& val, const std::integral_constant<bool, b>&){
        while(first != last){
          *first = val;
          ++first;
        }
      }

      template <typename T>                                                              // (2)
      void fill_impl(T* first, T* last, const T& val, const std::true_type&){
        std::memset(first, val, last-first);
      }

      template <class I, class T>
      inline void fill(I first, I last, const T& val){
        typedef std::integral_constant<bool,std::is_trivially_copy_assignable<T>::value
    && (sizeof(T) == 1)> boolType; // (1) fill_impl(first, last, val, boolType()); } } const int arraySize = 100'000'000; char charArray1[arraySize]= {0,}; char charArray2[arraySize]= {0,}; int main(){ std::cout << '\n'; auto begin = std::chrono::steady_clock::now(); my::fill(charArray1, charArray1 + arraySize,1); auto last = std::chrono::steady_clock::now() - begin; std::cout << "charArray1: " << std::chrono::duration<double>(last).count() << " seconds\n"; begin = std::chrono::steady_clock::now(); my::fill(charArray2, charArray2 + arraySize, static_cast<char>(1)); last= std::chrono::steady_clock::now() - begin; std::cout << "charArray2: " << std::chrono::duration<double>(last).count() << " seconds\n"; std::cout << '\n'; }



    Back to the code example. If the expression boolType() in line (1) is true, the optimized version of my::fill_impl in line 2 is used. This variant fills the memory of 100 million entries with the value 1.  sizeof(char) is 1.

    What about the performance of the program? I compiled the program without optimization to measure the non-optimized performance.

    fillGcc

    The optimized version in line (2) is about ten times faster. Interestingly, when I enable full optimization, both variants are equally fast because the compiler generates the same code for both variants. Also, the generic version (line (3)) uses memset: fillGCC.cpp with maximum optimization on Compiler Explorer.

    I presented an old GCC implementation  std::fill, because the newer ones are not so easy to read. Here are the essential parts of the GCC 6 implementation.

    std::fill

    // fill
    // Specialization: for char types we can use memset.
    template<typename _Tp>
      inline typename
      __gnu_cxx::__enable_if<__is_byte<_Tp>::__value, void>::__type     // (1)
      __fill_a(_Tp* __first, _Tp* __last, const _Tp& __c)
      {
        const _Tp __tmp = __c;
        if (const size_t __len = __last - __first)
        __builtin_memset(__first, static_cast<unsigned char>(__tmp), __len);
      }




    The GCC 6 implementation uses SFINAE. The full specialization of the function template __fill_a use __builtin_memset. The crucial part in this implementation is line (1): __gnu_cxx::__enable_if<__is_byte<_Tp>::__value, void>::__type. Let me rewrite this expression in a human-readable way and use the official names.

    std::enable_if<std::is_byte<Tp>::value, void>::type




    The expression checks first if the template parameter TP is a byte:std::is_byte<T>::value. If this expression evaluates to true thanks to std::enable_if from the type-traits library SFINAE kicks in. SFINAE stands for Substitution Failure Is Not An Error and applies during overload resolution of a function template. If substituting the template parameter fails, the specialization is discarded from the overload set, but this failure causes no compiler error. This means in this concrete case: When the condition std::is_byte<T>::value returns false, this full specialization is discarded, and another version of __fill_a is used.

    What’s next?

    First, I take a Christmas break of two weeks. My next post will be published on 10th January 2022. I will write about constexpr functions because they have much in common with templates and become more potent with C++20.
