TemplateMetaprogramming

Template Metaprogramming – Hybrid Programming

First of all, hybrid programming is not an official term. I created it to emphasize an exciting aspect of templates. The difference between function arguments and template arguments.

 TemplateMetaprogramming

I ended my last post, “Template Metaprogramming – How it Works” with a riddle. Here is the context for the riddle.

The Riddle

The function power and Power calculate the pow(2, 10). power is executed at run time and Power at compile time.

// power.cpp

#include <iostream>

int power(int m, int n) {
    int r = 1;
    for(int k = 1; k <= n; ++k) r *= m;
    return r;
}

template<int m, int n>
struct Power {
    static int const value = m * Power<m, n-1>::value;
};

template<int m>
struct Power<m, 0> {
    static int const value = 1;
};

int main() {

    std::cout << '\n';

    std::cout << "power(2, 10)= " << power(2, 10) << '\n';
    std::cout << "Power<2,10>::value= " << Power<2, 10>::value << '\n';

    std::cout << '\n';
}





Rainer D 6 P2 500x500Modernes C++ Mentoring

Be part of my mentoring programs:

  • "Fundamentals for C++ Professionals" (open)
  • "Design Patterns and Architectural Patterns with C++" (open)
  • "C++20: Get the Details" (open)
  • "Concurrency with Modern C++" (starts March 2024)
  • Do you want to stay informed: Subscribe.



    If you want more details about both functions, read my previous post, “Template Metaprogramming – How it Works“.

    So far, so good, but what is happening in the following example?



    // powerHybrid.cpp

    #include <iostream>

    template<int n>
    int Power(int m){
        return m * Power<n-1>(m);
    }

    template<>
    int Power<0>(int m){
        return 1;
    }

    int main() {

        std::cout << '\n';

        std::cout << "Power<0>(10): " << Power<0>(20) << '\n';
        std::cout << "Power<1>(10): " << Power<1>(10) << '\n';
        std::cout << "Power<2>(10): " << Power<2>(10) << '\n';


        std::cout << '\n';

    }



    As expected, Power does its job.

    powerHybrid

    Here is the riddle in short one more: Is Power a function or a metafunction?

    Hybrid Programming

    To make it short.

    The calls Power<0>(10), Power<1>(10), and Power<2>(10) use sharp and round brackets and calculate 10 to the power of 0, 1, and 2. This means 0, 1, and 2 are compile-time arguments, and 10 is a run-time argument. To say it differently: Power is, at the same time, a function and a metafunction. Let me elaborate more on this point.

    Power at Run Time

    First, I can instantiate Power for 2, give it the name Power2 and use it in a for-loop.



    // powerHybridRuntime.cpp

    #include <iostream>

    template<int n>
    int Power(int m){
        return m * Power<n-1>(m);
    }

    template<>
    int Power<0>(int m){
        return 1;
    }

    int main() {

        std::cout << '\n';

        auto Power2of = Power<2>;

        for (int i = 0; i <= 20; ++i) {
            std::cout << "Power2of(" << i << ")= "
                      << Power2of(i)  << '\n';
         }

        std::cout << '\n';

    }

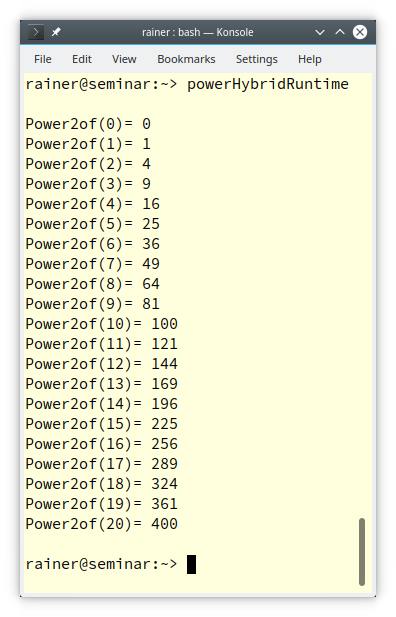

    Power2of enables it to calculate the squares of 0 … 20 at run time.

    powerHybridRuntime

    You cannot invoke Power with different template arguments in the for-loop. Template instantiation requires a constant expression. To make it short: The following use of Power fails with a compile-time error that “the value of 'i' is not usable in a constant expression“.

    for (int i = 0; i <= 20; ++i) {

        std::cout << “Power<“ << i << “>(2)= “ << Power<i>(2) << ‘\n’;

    }



    Honestly, there is a more interesting difference between a function and a metafunction.

    Power at Compile Time

    When you study the previous program powerHybrid.cpp in C++ Insights, you see that each usage of Power with a different template argument creates a new type.

    This means that the invocation  Power<2>(10) causes the recursive template instantiation for Power<1>(10), and Power<0>(10). Here is the output of C++ Insights.

    TemplateInstantiation

     To sum up my observation. Each template instantiation creates a new type.

    Creating New Types

    When you use a template such as Power, std::vector, or std::array, you can invoke it with two kinds of arguments: function arguments and template arguments. The function arguments go into the round brackets (( ... )) and the template arguments go into the sharp brackets (<...>). The template arguments create new types. Or, to put it the other way around. You can parameterize templates in two ways: at compile time with sharp brackets (<...>). and at run time with round brackets (( ... ).



    auto res1 = Power<2>(10);                       // (1)
    auto res2 = Power<2>(11);                       // (2)
    auto rest3 = Power<3>(10);                      // (3)

    std::vector<int> myVec1(10);                    // (1)
    std::vector<int> myVec2(10, 5);                 // (2)
    std::vector<double> myDouble(5);                // (3)

    std::array<int, 3> myArray1{ 1, 2, 3};          // (1)
    std::array<int, 3> myArray2{ 1, 2, 3};          // (2)
    std::array<double, 3> myArray3{ 1.1, 2.2, 3.3}; // (3)




    • (1) creates a new Power instance, std::vector of length 10, or a std::array with three elements
    • (2) reuses the already created types in the previous lines (1)
    • (3) creates a new type

    A few of my German readers already pointed it out. My metafunction Power has a significant flaw.

    The Big Flaw

    When I instantiate Power with a negative or too-big number, I get undefined behavior.

    1. Power<-1>(10) causes an infinite template instantiation because the boundary condition Power<0>(10) does not apply.
    2. Power<200>(10) causes an int overflow.

    The first issues can be fixed by using a static_assert inside the Power template: static_assert(n >= 0, "exponent must be >= 0");. There is no simple solution for the second issue.



    // powerHybridRuntimeOverflow.cpp

    #include <iostream>

    template<int n>
    int Power(int m){
        return m * Power<n-1>(m);
    }

    template<>
    int Power<0>(int m){
        return 1;
    }

    int main() {

        std::cout << '\n';

        auto Power10of = Power<10>;

        for (int i = 0; i <= 20; ++i) {
            std::cout << "Power10of(" << i << ")= "
                      << Power10of(i)  << '\n';
         }

        std::cout << '\n';

    }




    The overflow starts with Power10of(9). pow(9, 10) is 3,486,784,40


    powerHybridRuntimeOverflow

    My Disclaimer

     At the end of these three posts, “Template Metaprogramming – How it All Started“, “Template Metaprogramming – How it Works” about template metaprogramming, I have to make a disclaimer. I don’t want that you use templates to program at compile time. Most of the time, constexpr (C++11) or consteval (C++20 is the better choice.

    I explained template metaprogramming for two reasons.

    1. Template metaprogramming helps you better understand templates and the process of template instantiation.
    2. The type-traits library applies the idea and uses the conventions of template metaprogramming.

    What’s next?

    In my next post, I will write about the type-traits library.  The type-traits library (C++11) is template metaprogramming in a beautiful guise.
